B6SE-[VAR]-03NJ | LoRa / LPWAN Light Duty Base Station Antenna

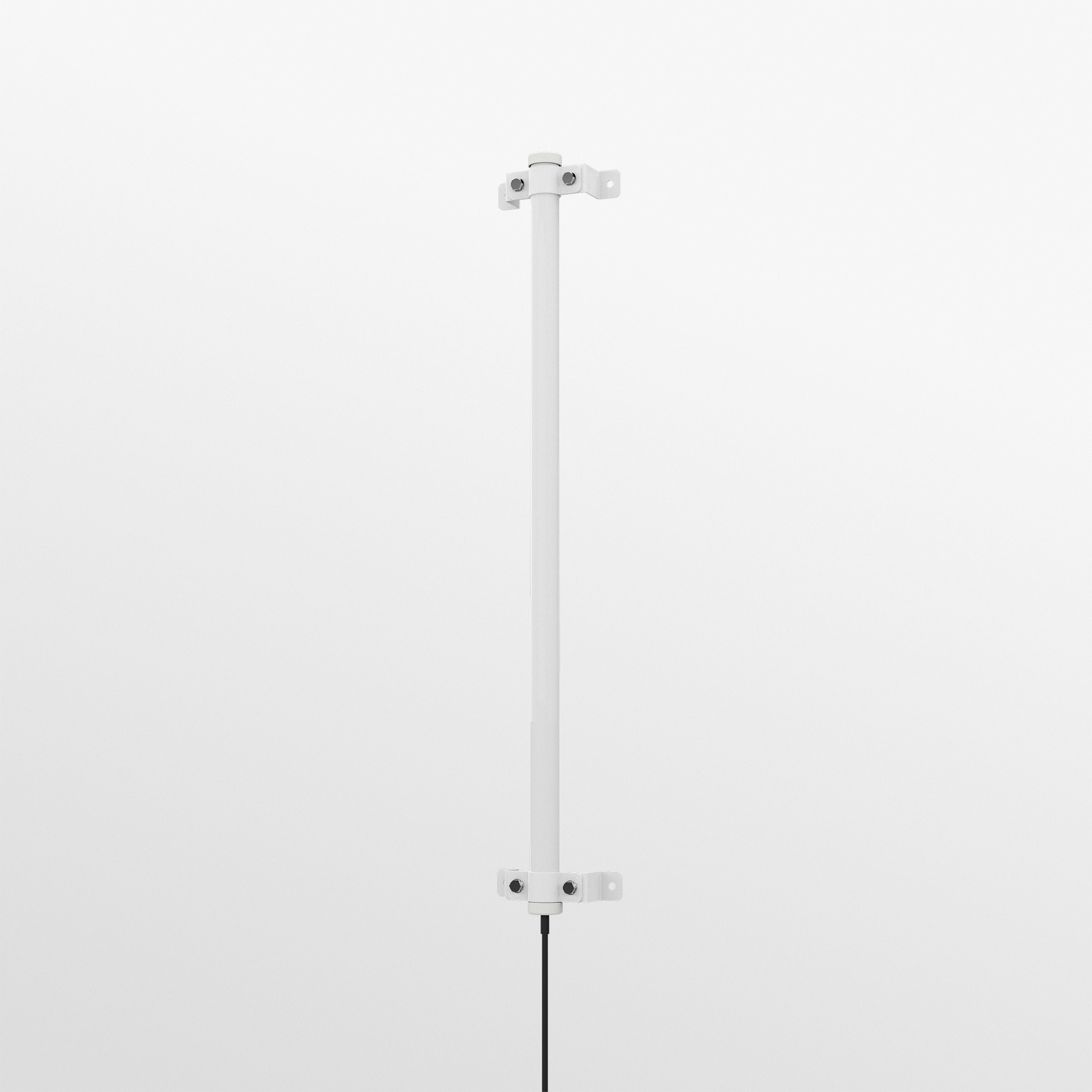

The Panorama B6SE-[VAR]-03NJ is designed to decrease the lifetime cost of M2M and LoRa applications by offering a robust light duty base station for challenging signal environments.

The antenna offers high gain Omni-directional performance for either the
868MHz or 915MHz frequency band. The efficient element design ensures a
high first-time connection rate and an ongoing, robust communications
link even in many low coverage areas. The antenna can be installed using
the supplied wall mount brackets.

Description

The Panorama B6SE-[VAR]-03NJ is designed to decrease the lifetime cost of M2M and LoRa applications by offering a robust light duty base station for challenging signal environments. The antenna offers high gain Omni-directional performance for either the 868MHz or 915MHz frequency band. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas. The antenna can be installed using the supplied wall mount brackets.

Technical Specifications

Part numbers B6SE-868-03NJ and B6SE-915-03NJ; white; 863–875 MHz or 880–960 MHz; 6 dBi; 0.3 m CS29 cable; N female; 665 mm high × 25.5 mm diameter; 20 W; −30 to +70 °C; IP wall/mast mounting. Features: outdoor light-duty base-station antenna, omnidirectional and high gain. Applications: M2M/IoT, LoRa/Sigfox.

Additional information

Colour	White
Cable Length	Below 1m
Connector (VHF/UHF)	N (f)
Frequency Range	863-875MHz, 880-960MHZ
