DW-IN2933 | 10-in-1 Kit 6x 4G/5G 1x GPS with 5m cables + 3x WiFi Paddles

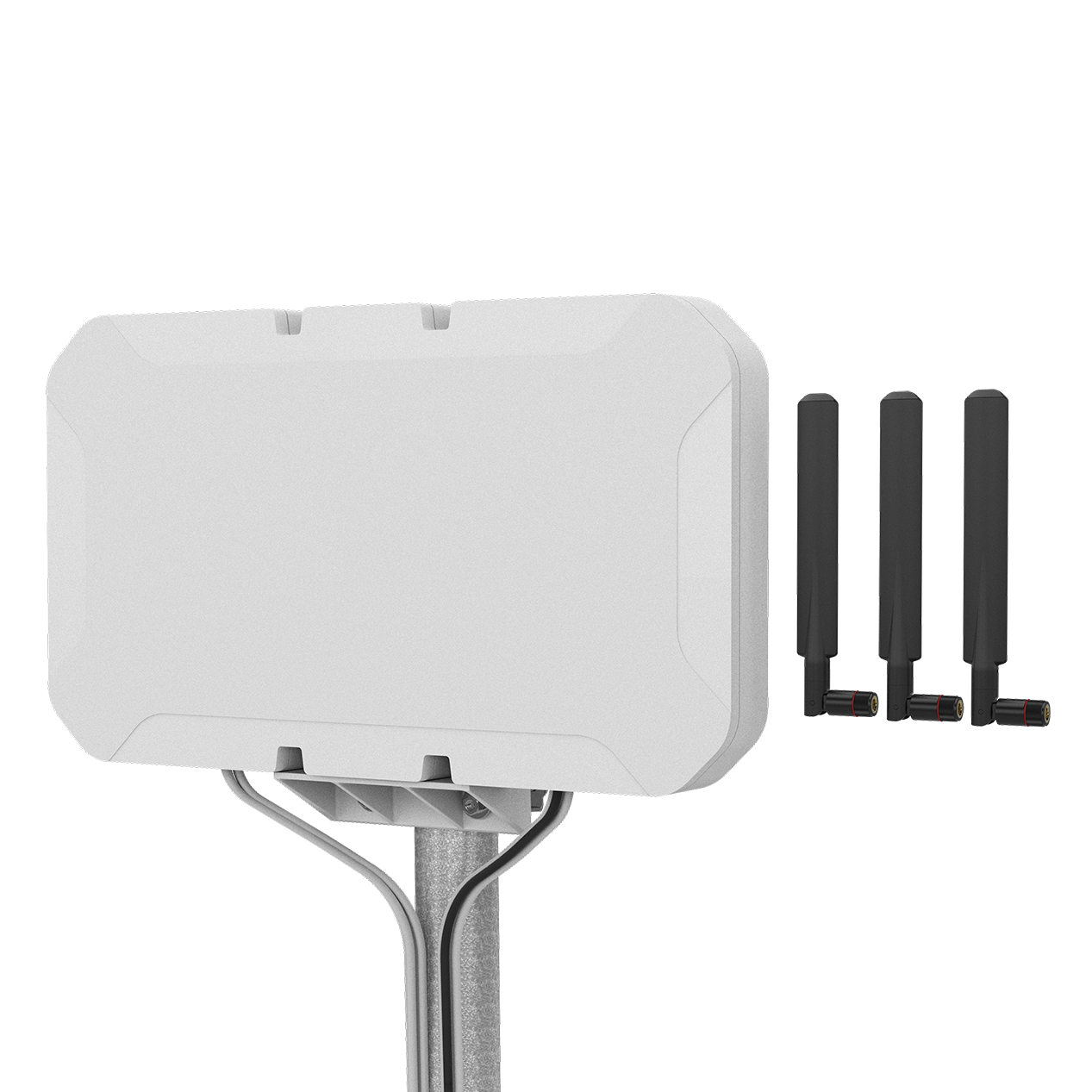

The DW-IN2933 is a complete 10-in1 antenna kit for fixed site applications and is compatible with the Dejero Gateway 211. The kit includes a wall / mast mount antenna with 6x 4G/5G elements and 1x GPS/GNSS element. The cellular elements cover 617-960/1427-6000MHz for 3x 2×2 MiMo operation providing a  reliable high performance cellular connection and the kit is supplied with 3x WiFi paddle antennas which can be fitted directly to the Gateway for WiFi distribution.

The wall / mast mount antennna features multiple mounting options including fitment to interior walls using screws, wall mounting using the supplied offset bracket and mast mounting using the offset bracket and clamps  The antenna can also be stood on a desk
using supplied mounting feet.

The omnidirectional radiation pattern of the antennas allow easy placement without requiring directional
alignment.

The wall / mast mount antenna is fitted with integrated 5m (16.4′) flame retardant CS32 cables  (FR CS29 for GPS/GNSS) and SMA (m) plugs which minimises exposed connector joints and
simplifies cable management for easy installation. The WiFi paddles offer reverse polarity SMA connectors and an articulated hinge joint allowing optimal orientation.
