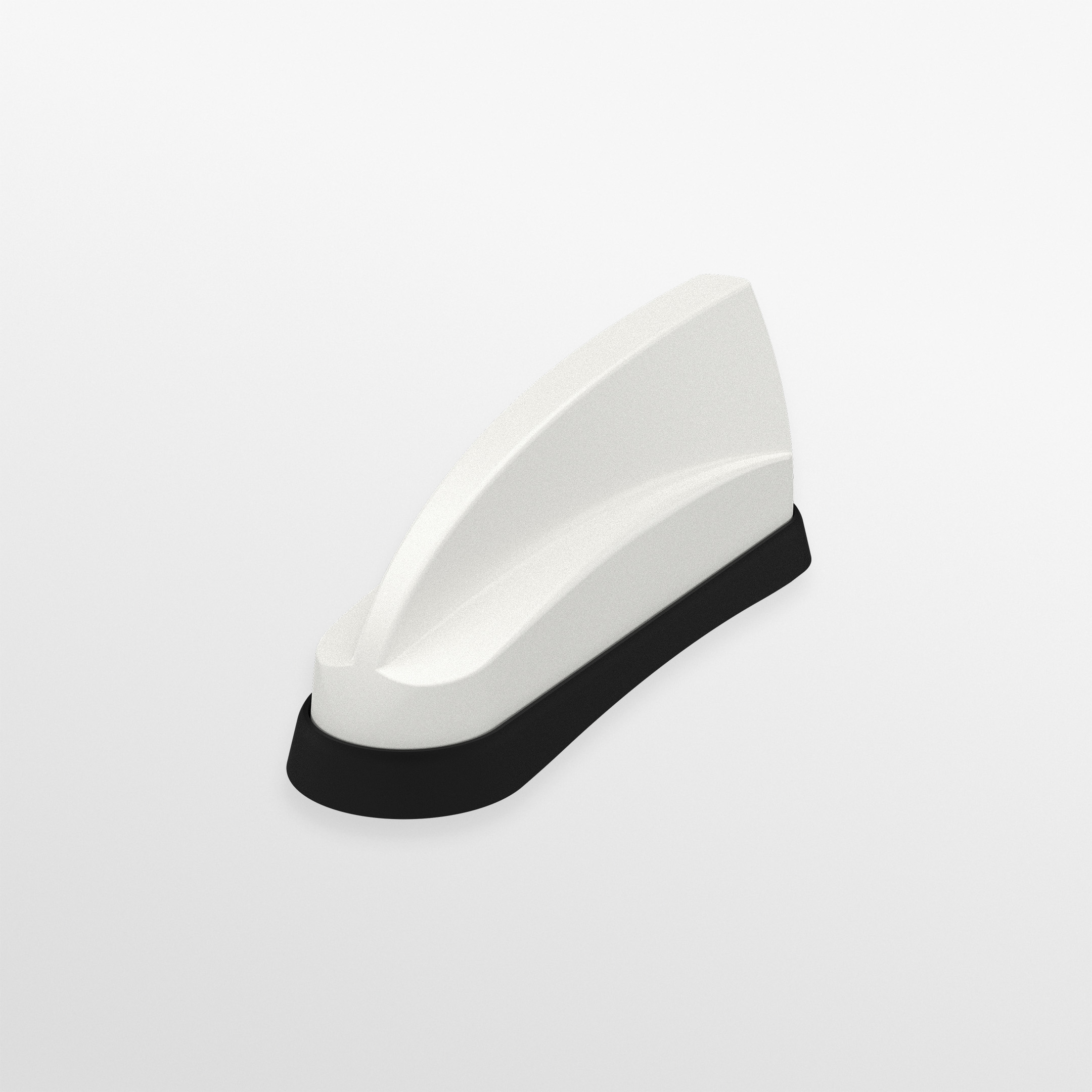

GPSD-6-60 | 4G/5G MiMo Sharkee® 4G/5G + GPS/GNSS + Whip Mounting & Optional MiMo Wifi

The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.

The GPSD ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.

The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

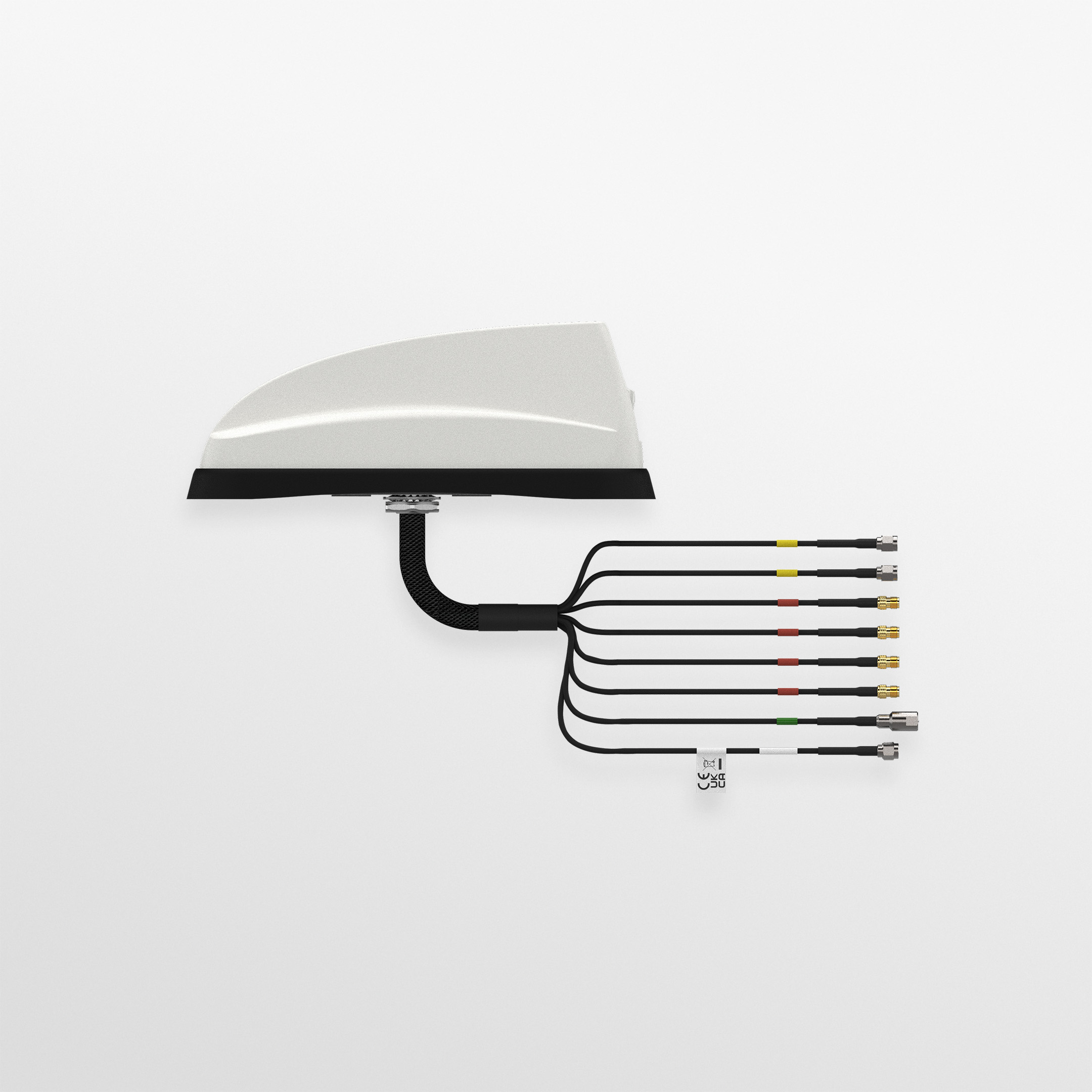

The shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integrated stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required.

Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
