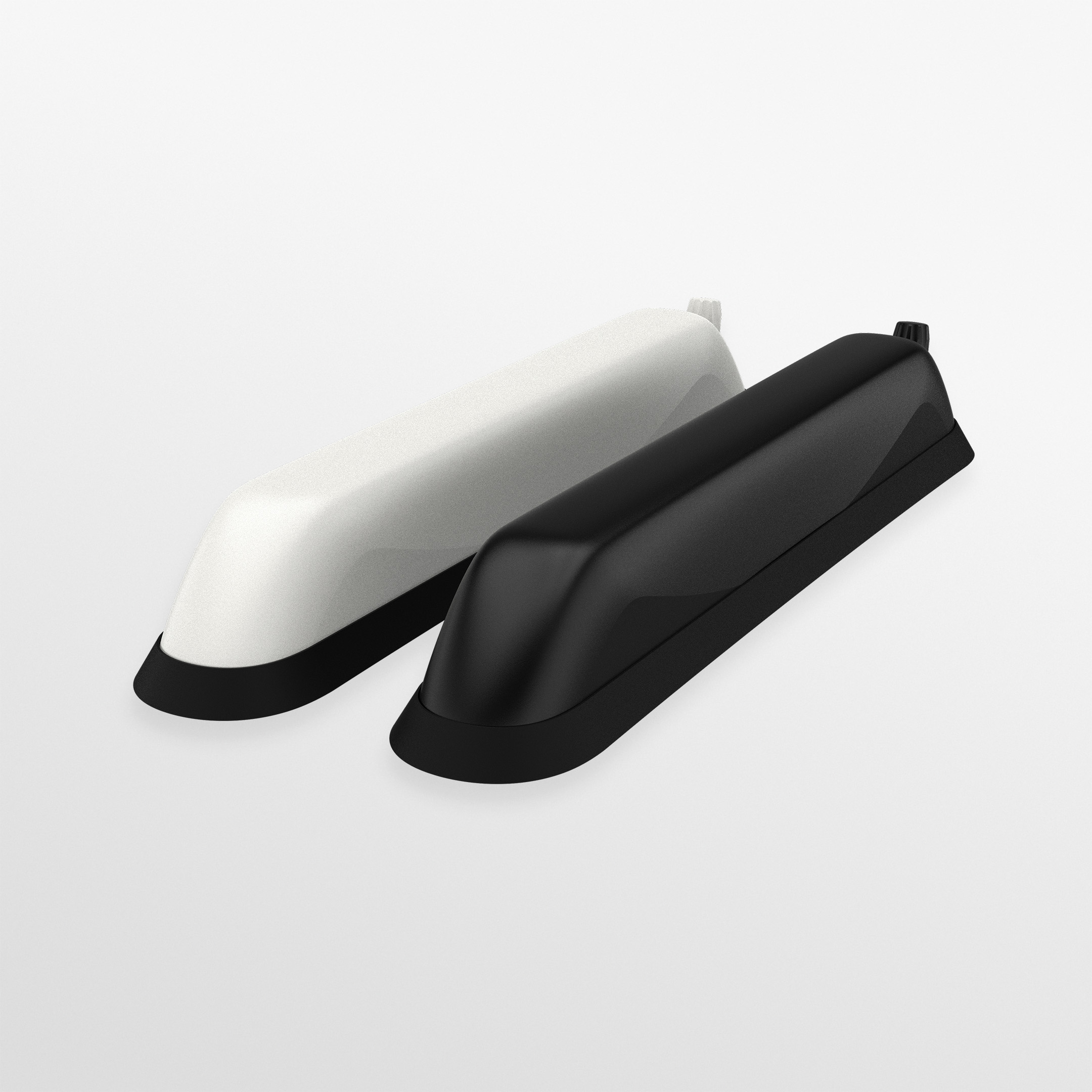

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna

The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module.

The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.
The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane.
