Model / SKU: L[G]AMM-7-27-[X]24-58

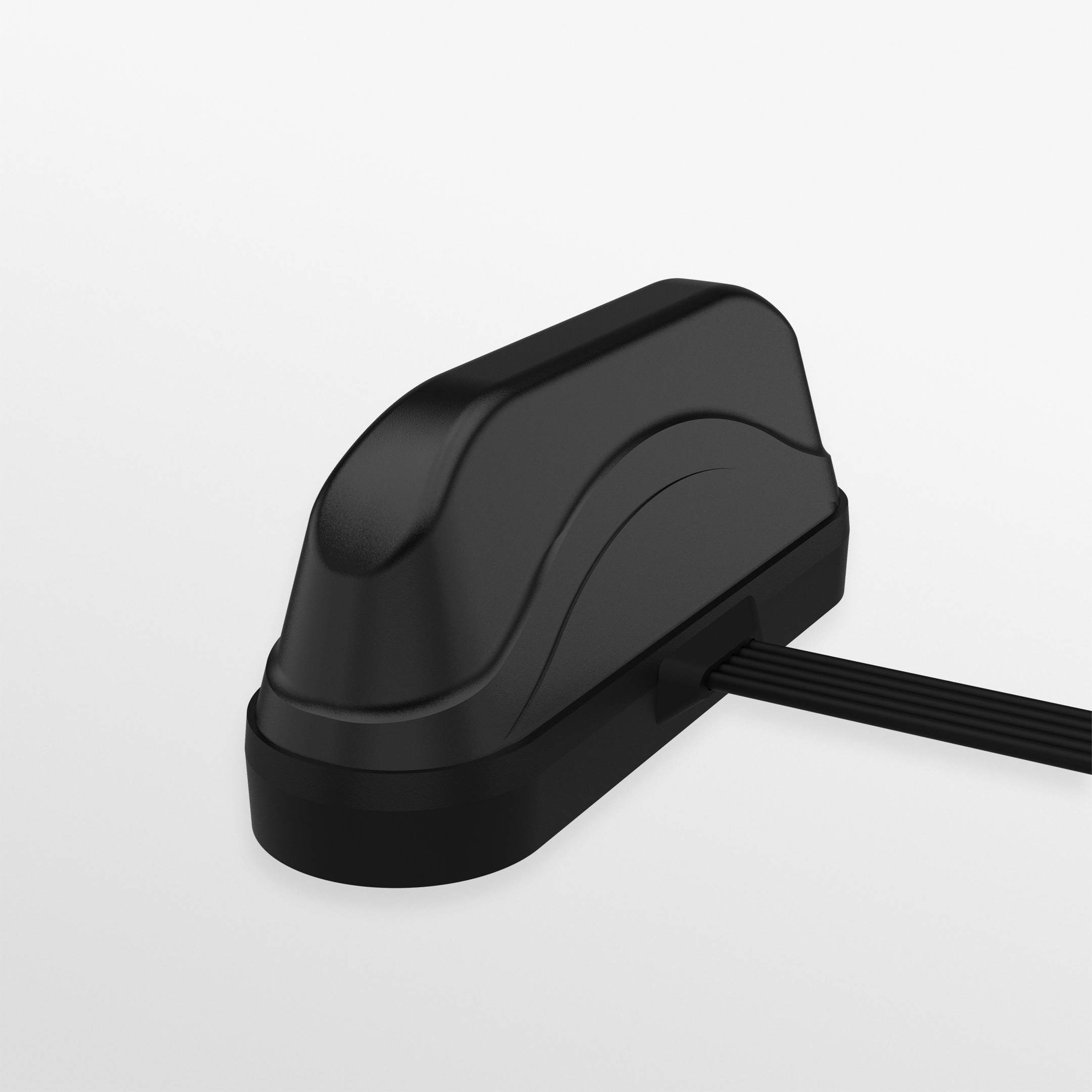

![L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna](https://wirelesssolutions.syd1.mystaging.site/wp-content/uploads/2026/10/LGAMM-7-27-X24-58-1-Black-Main-view.jpg "L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna")
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential.
It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired.
The L[G]AM consists of 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The antenna is designed to be mounted magnetically.
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, No |
| Cable Length | Between 1m & 3m, Between 3m & 5m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | SMA Rev Pol |
| Connector (GPS) | No Connector, SMA (m) |
