Model / SKU: LPBEM-6-60
The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.

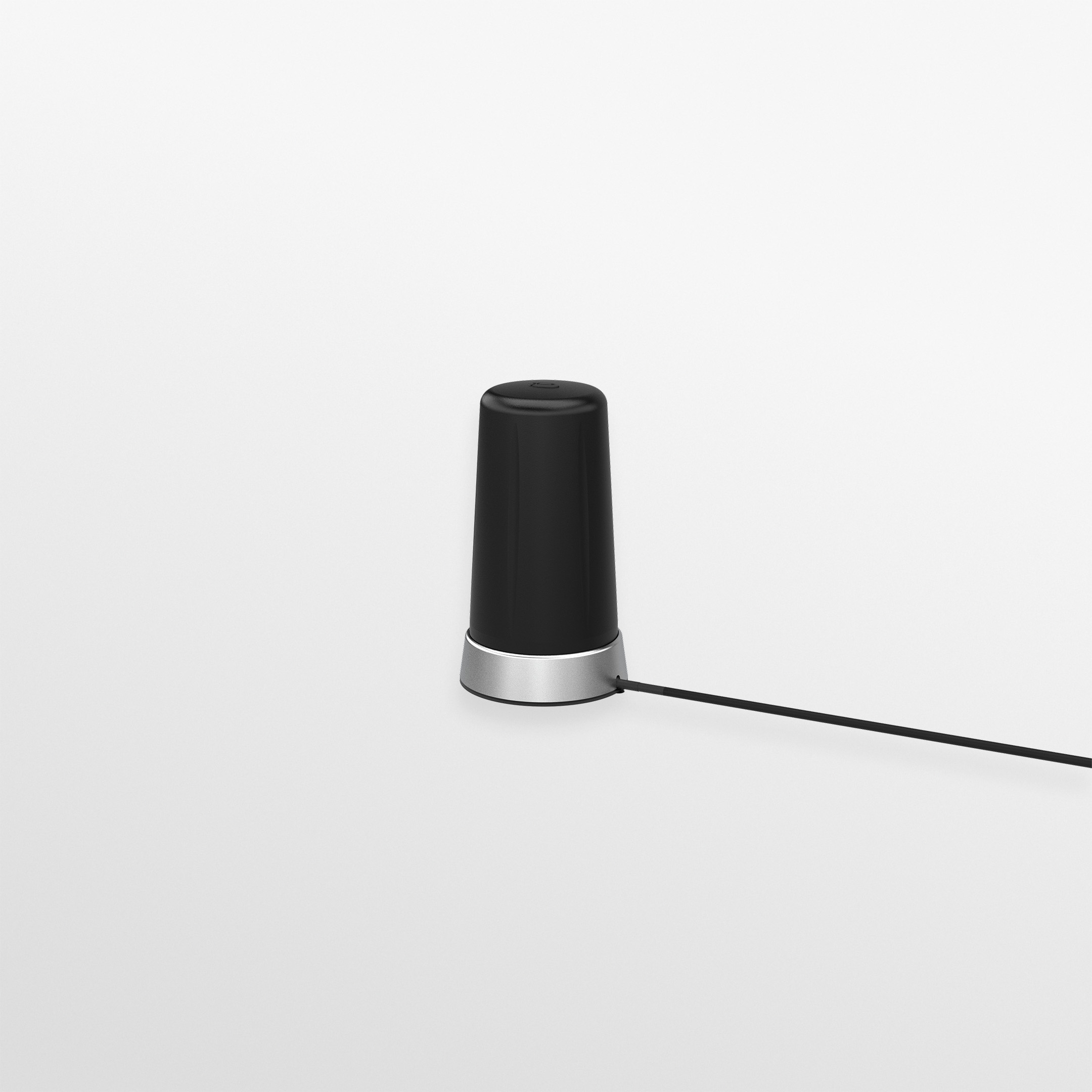

The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960 MHz and 1710-6000 MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient length of flexible RG174 cable and a double sided adhesive pad, the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.
The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz. The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Between 1m & 3m, Between 5m & 10m |
| Connector (LTE) | SMA (m) |
