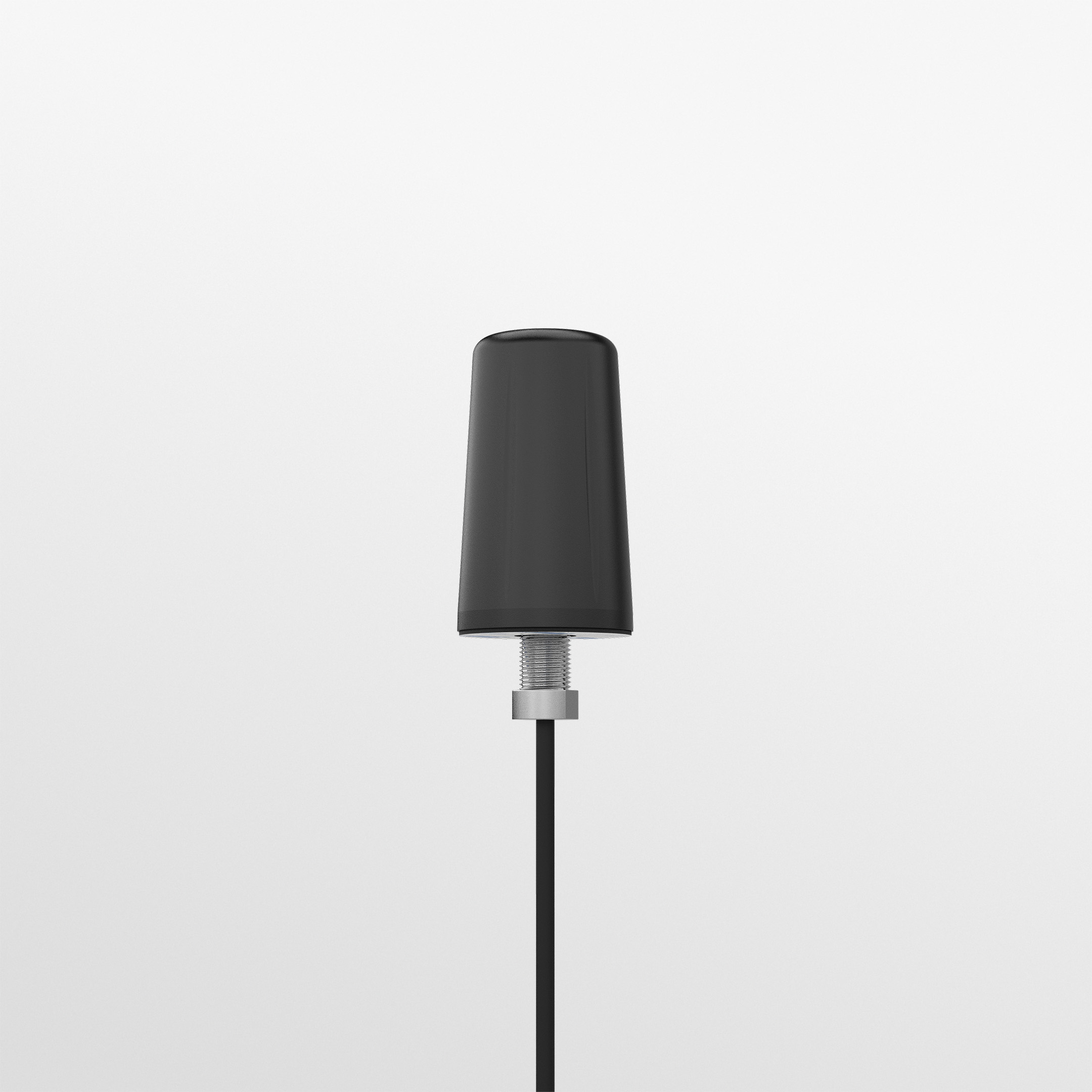

LPBSC-6-60 | Low Profile Antenna 5G/4G/3G/2G

LPBSC-6-60-[X] is an omni-directional broadband antenna range covering 617-960/1427-6000MHz which has been specially adapted for use in hostile, frequently flooded environments for applications like sewer monitoring and water metering.

The antenna is designed to be wall, mast or panel mounted either using a bracket (not supplied) or on a device / enclosure. The exposed metal parts of the antenna body are 316 stainless steel making the antenna very resistant to corrosion.

The omni-directional radiation pattern allows easy placement of the antenna in any position, without requiring directional alignment.

The LPBSC-6-60-[X] antenna is supplied with an integral ultra-low loss FR CS29 coaxial cable, of various lengths, fitted a special SMA plug which forms a seal preventing water wicking up the cable into the antenna housing during submersion.

This antenna is protected to IP68 (5m / 7 days)  when mounted on a bracket provided that the SMA plug is properly connected.
