Model / SKU: LP[G]-7-38[-24-58]

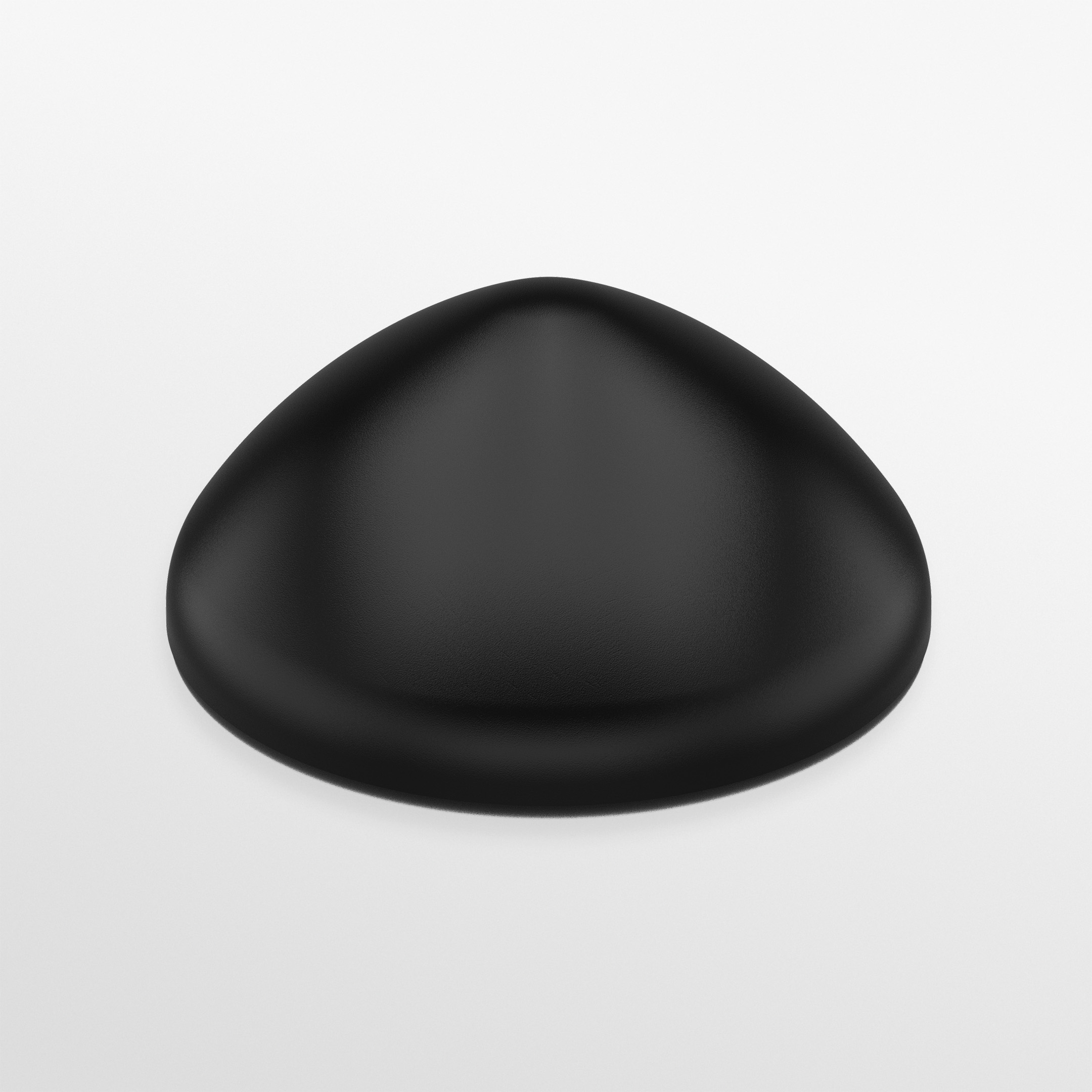

![LP[G]-7-38[-24-58] | Low Profile Robust 4G/5G Combination Antenna](https://wirelesssolutions.syd1.mystaging.site/wp-content/uploads/2026/10/LPG-7-38-24-58-1-Main-View.jpg "LP[G]-7-38[-24-58] | Low Profile Robust 4G/5G Combination Antenna")
The Panorama LP[G]-7-38[-24-58] range is a cost-effective, robust low profile antenna suitable for IoT & M2M use in hostile environments.
The antenna covers 698-960/1710-3800MHz supporting 2G/3G/4G and 3.5GHz 5G bands, with optional 2.4/5.0GHz WiFi and/or GPS/GNSS with 30dB LNA. The effective element design ensures a robust communications link, even in areas with the poor network coverage.
It can be installed on conductive or non-conductive panels, in a single 19mm (3/4”) hole and is fitted with flame retardant RG174 cable(s )compliant with UN ECE R118.03 and available with FAKRA or SMA connectors.
The antenna range is certified to both IK10 and IP69K, when correctly installed, meeting the most stringent vandalism and ingress protection standards.
The Panorama LP[G]-7-38[-24-58] range is a cost-effective, robust low profile antenna suitable for IoT & M2M use in hostile environments. The antenna covers 698-960/1710-3800MHz supporting 2G/3G/4G and 3.5GHz 5G bands, with optional 2.4/5.0GHz WiFi and/or GPS/GNSS with 30dB LNA. The effective element design ensures a robust communications link, even in areas with the poor network coverage.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| GPS | 1 Module, No |
| Cable Length | Between 1m & 3m, Between 3m & 5m |
| Connector (LTE) | FAKRA D, SMA (m) |
| Connector (WIFI) | FAKRA I, No Connector, Reverse Polarity SMA |
| Connector (GPS) | FAKRA C, No Connector, SMA (m) |
