Model / SKU: LP[G]AM[F]-6-60

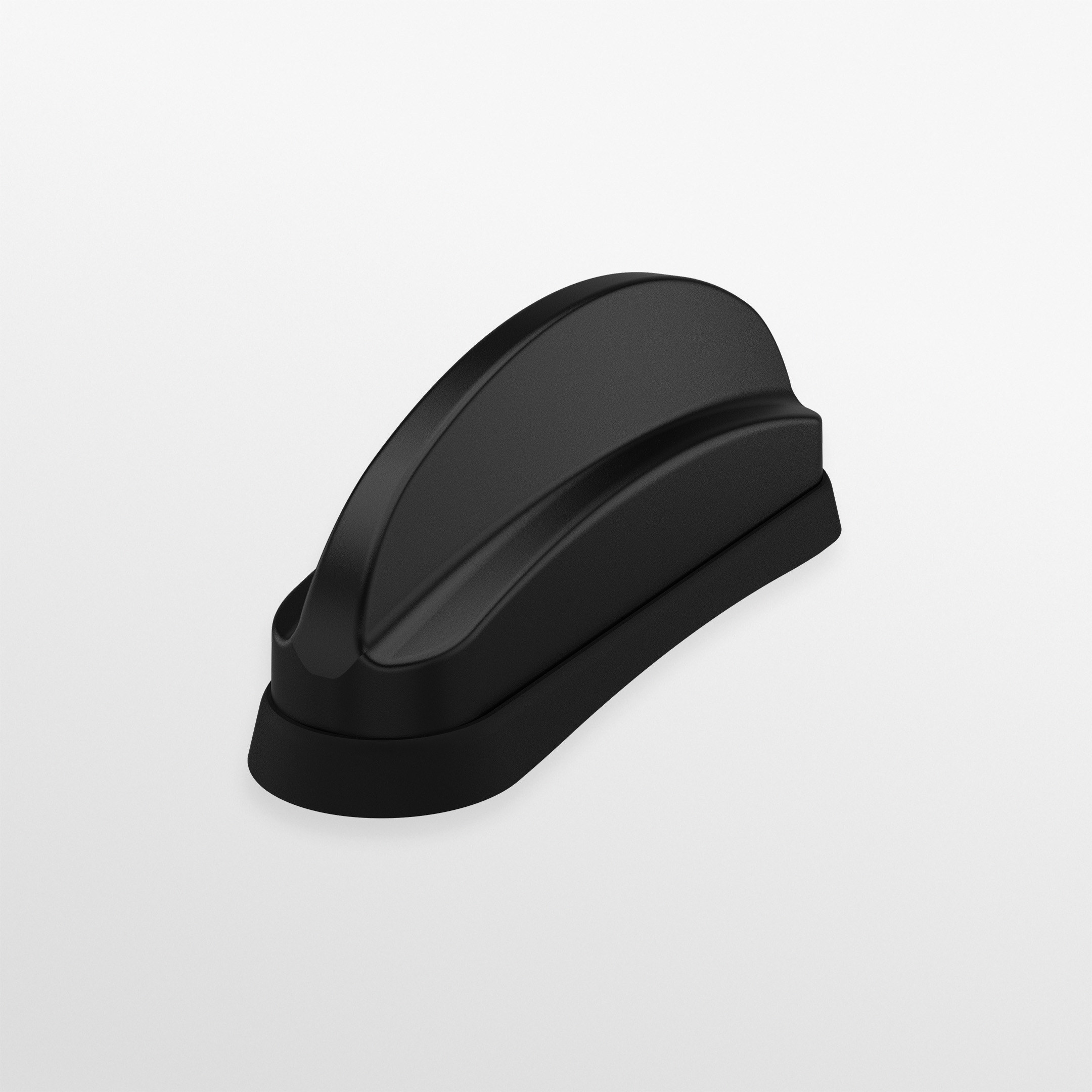

![LP[G]AM[F]-6-60 | 4G/5G MiMo IOT Antenna](https://wirelesssolutions.syd1.mystaging.site/wp-content/uploads/2026/10/LPGAMF-6-60-1-Black-Main-View.jpg "LP[G]AM[F]-6-60 | 4G/5G MiMo IOT Antenna")
The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E.
An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.
This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E. An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 4 x 4 MIMO, No |
| Cable Length | Between 1m & 3m, Between 3m & 5m |
| Connector (LTE) | FAKRA D, SMA (m) |
| Connector (WIFI) | FAKRA I, No Connector, Reverse Polarity SMA |
| Connector (GPS) | FAKRA C, No Connector, SMA (m) |
