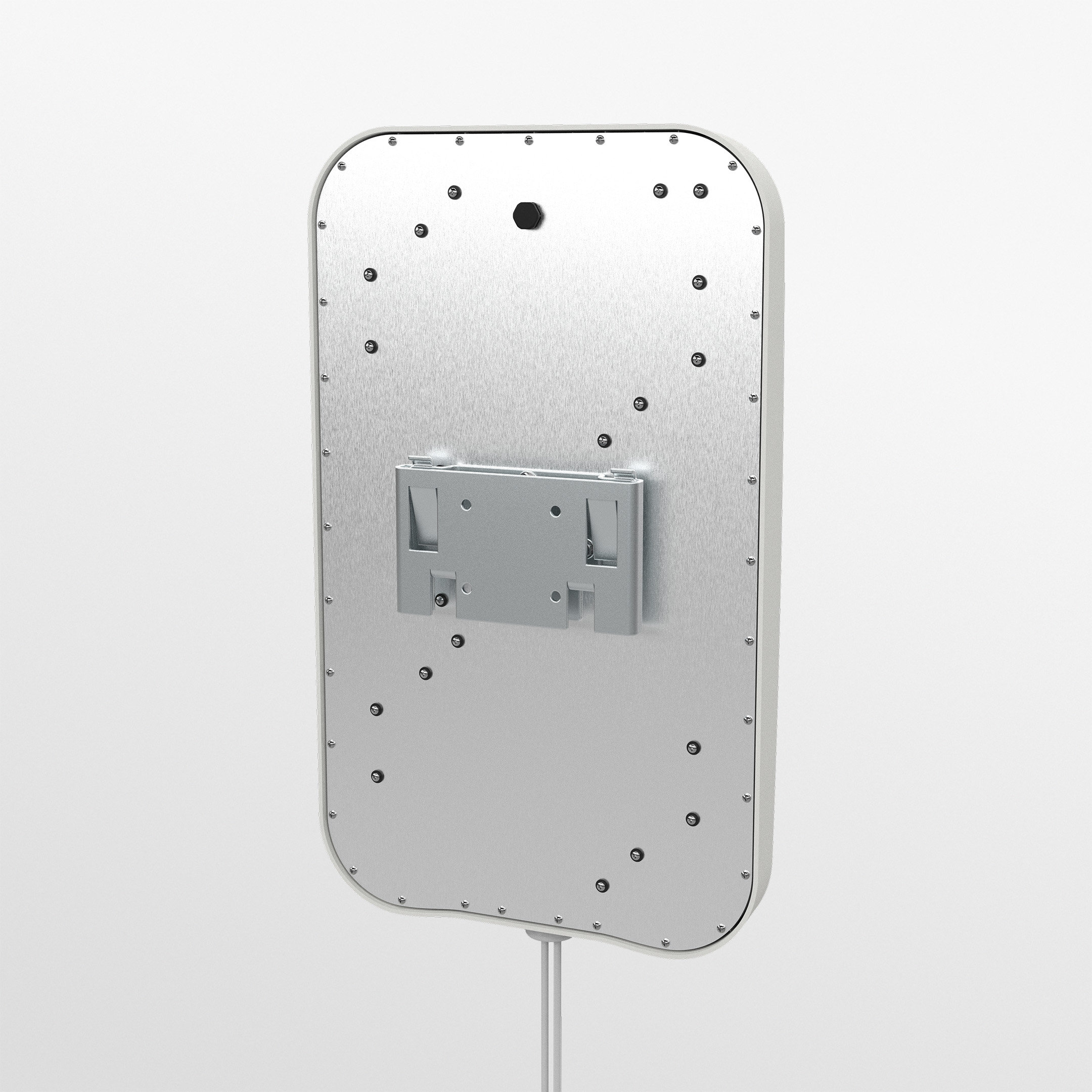

WMM2G[G]-6-60 | 2×2 MiMo 4G/5G Directional Antenna

The WMM2G[G]-6-60 is a high gain directional 2×2 MiMo antenna for 4G and 5G networks. It incorporates two wideband element assemblies in a single housing and is designed to support fixed-site client devices.

It offers a 6dBi peak gain for 617- 960MHz and a 9dBi peak gain for 1710-6000MHz. The weather-resistant housing is designed for wall or mast mounting with the supplied hardware.

The standard WMM2G[G]-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminate exposed connector joints and simplifies the installation process.

The WMM2G[G]-6-60-05NJ version has 50cm length cables, fitted with N-type jacks, which is ideal for installations that require a longer cable run, where Panorama’s CS240 or CS400 type coaxial cable can be used to minimise the cable insertion loss.

The WMM2G[G]-6-60 is a value-added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates for the subscriber, resulting in customer satisfaction and retention.
