Model / SKU: WMM4G[G]-6-60
![WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna](https://wirelesssolutions.syd1.mystaging.site/wp-content/uploads/2026/10/WMM4GG-6-60-4-Side-View.jpg "WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna")
![WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna - Image 2](https://wirelesssolutions.syd1.mystaging.site/wp-content/uploads/2026/10/WMM4GG-6-60-5-SAB-186.jpg)
The WMM4G[G]-6-60 is a high directional gain 4×4 MiMo signal boosting
antenna for 4G and 5G networks. Incorporating four separately fed
wideband element assemblies in a single housing the WMM4G[G]-6-60 is
equipped to provide client side MiMo support for 4G and 5G networks
offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at
1710-6000MHz.

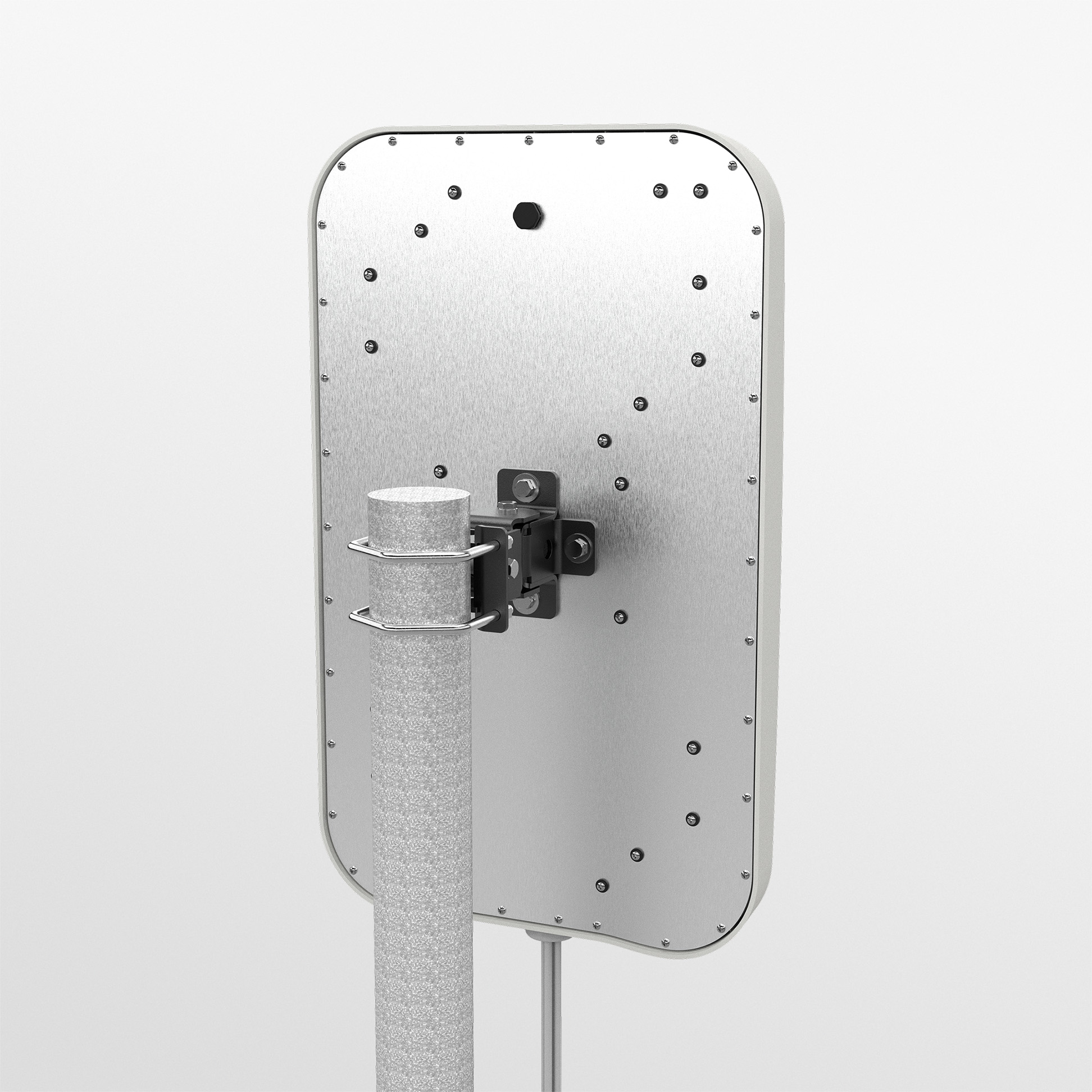

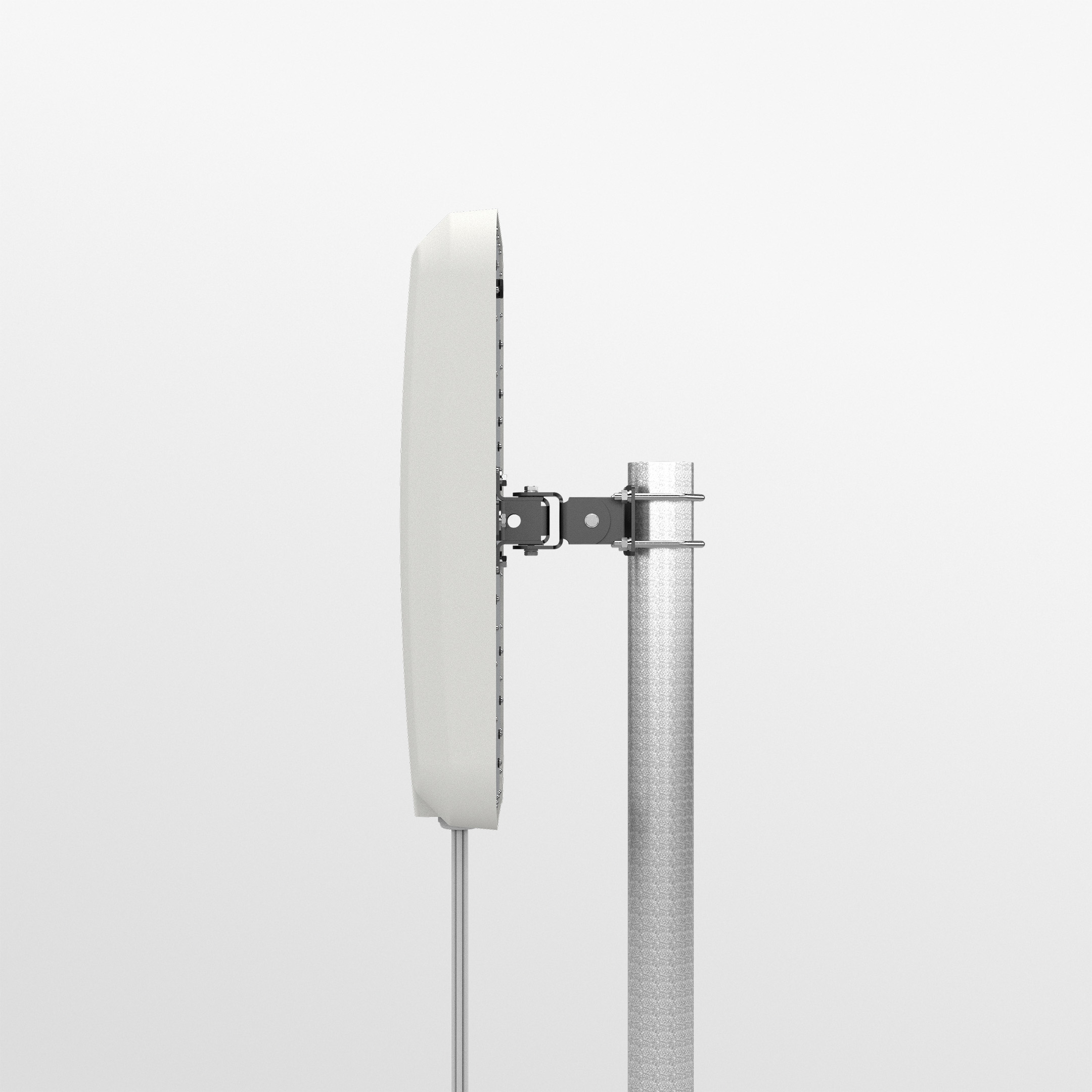

The weather resistant housing is designed for wall mounting and
wall and mast mount brackets are provided. Supplied with fitted low loss
double shielded cable for cellular/LTE the WMM4G[G]-6-60 minimises exposed
connector joints and simplifies cable management for easy installation.
The WMM4G[G]-6-60 is a high directional gain 4×4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
Technical Datasheet (official Panorama source)
| Colour | White |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | FAKRA D, N (f), N (m), SMA (m) |
| Connector (GPS) | FAKRA D, N (f), No Connector, SMA (m) |
