Description
- Dual-polarised antenna feed with high isolation
- Industrial grade weatherproof PVC radome
- Extremely high gain across entire spectrum 700-2700 MHz
- Two integrated N Female connectors
- Heavy-duty mounting brackets included
Product

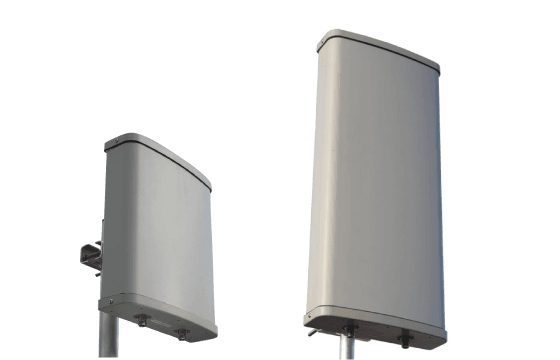

XPOL High Gain MiMo Panel Antenna – TEST
Model / SKU: WS-SEC-13-65
XPOL High Gain MiMo Panel Antenna – TEST
The XPOL High Gain MIMO Panel Antenna is high-performance, and great for industrial and commercial %G/4G MiMo applications. It is available in two versions – the WS-SEC-13-65 and WS-SEC-10-65 – offering 13 dBi and 10 dBi gain respectively. They are ideal for applications where signal strength and data speed are paramount.
Both offer high gain on Telstra’s new 4GX 700 MHz (Band 28) and 2600 MHz (Band 7) networks, as well as current 1800 MHz 4G, all the while being backwards compatible on all 2G and 3G voice and data networks.
The WS-SEC-13-65 is perfect for mobile broadband as its 60°-65° receiving angle means the antenna can be pointed in the ‘rough’ direction of the nearest tower to provide maximum gain. Its construction is in true ±45° ‘XPOL’ polarisation, providing total separation of the two data streams transmitted by the cell tower allowing a near 100% increase in speed over a single polarised antenna.
Additional information
| COLOUR | WHITE |
|---|---|
| SIZE | BIG AND SMALL |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 50 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 2400 – 2485MHz | 9dBi; 5150 – 5925MHz | 9dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 93 (mm) | 3.66 (in) |
| Width | 93 (mm) | 3.66 (in) |
| Height | 25 (mm) | 0.98 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall; Pole |
| APPROVALS DATA | |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO; Bluetooth |
